WORKSHOP SERIES

CNC PLASMA TABLES

CNC Clear Cut Workshop Series plasma tables make cutting metal affordable and efficient. These tables come equipped with a water bed which combats smoke pollution and material heat deformation.

The Workshop Series also comes standard with automatic torch height control which enhances consumable life and ads to the torch main body lifespan. A rigid, lightweight aluminium profile gantry promises great cut quality and optimized production, with a magnetic torch break-away feature to protect the cutting torch in the event of any torch collisions.

AVAILABLE SIZES

TABLEWORKING AREA
WS 1.02500x1300mm
WS 1.53100x1600mm

PRODUCTION PIERCE

Dependant on plasma (Up to 20mm)

CONTACT US FOR A QUOTEDOWNLOAD BROCHURE

COMPATIBLE PLASMA UNITS

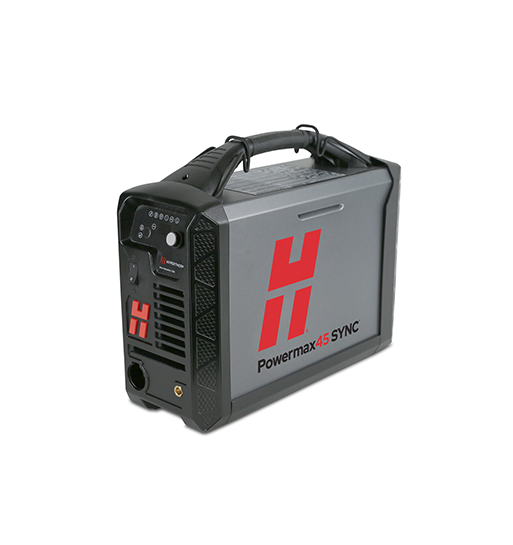

Powermax 45

DOWNLOAD BROCHURE

Powermax 65

DOWNLOAD BROCHURE

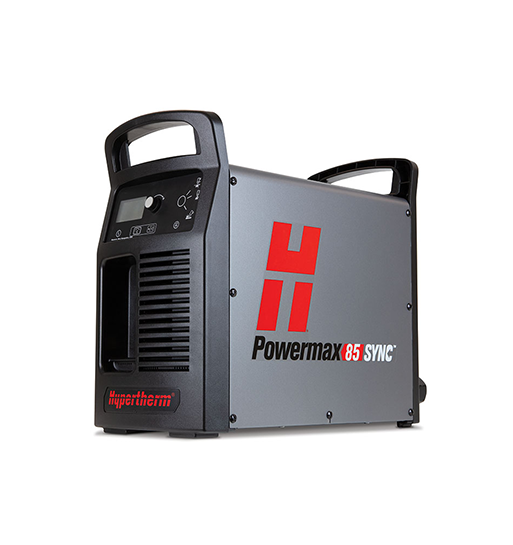

Powermax 85

DOWNLOAD BROCHURE

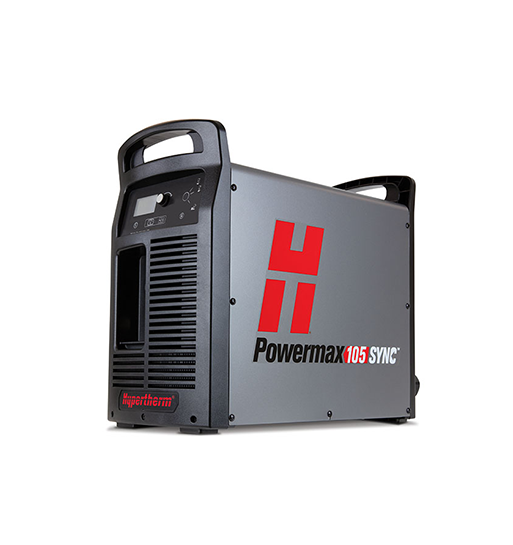

Powermax 105

DOWNLOAD BROCHURE

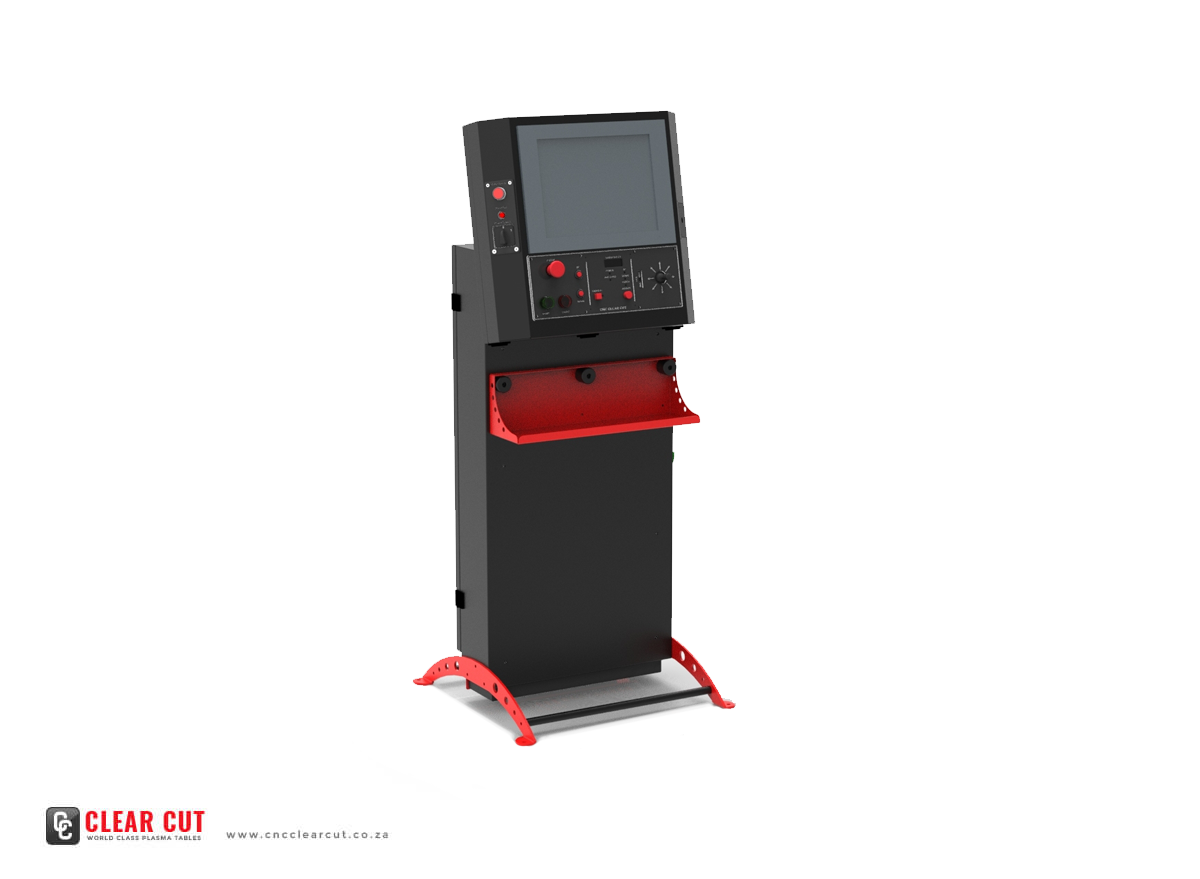

WORKSHOP CONTROLLER OPTIONS


FEATURES


Combats smoke pollution and material heat deformation.
High accuracy
Advanced torch height control
Switch plate sensing
Compact footprint
Aluminum profile gantry for optimised acceleration, cutting speeds and cut quality
Safety: X & Y limit switches, Emergency stop, Torch collision magnetic break-away.

SPECIFICATIONS


Waterbed
Working area: 2500x1300mm - 3100x1600mm
Controller: Mach3
Motion: Stepper Driven
Repeated accuracy: ± 0.05mm
Rapid speeds up to 12000mm/min
Acceleration: Up to 35mG
Direct drive reduction planetary gearbox
Pressure loaded rack & pinion
High precision linear guides
Dual X-Drive gantry system
Plasma Range: Powermax 45 - 105
