FX ADVANCED
HIGH DEFINITION PLASMA TABLEThe FX Advanced machine has endless capabilities, with table sizes from 2500-3000mm wide by any given length.
Combining unlimited table size with technologies such as True Hole, Rapid Parts, Scribing and True Bevel as an added extra, manufacturers of any calibre can expect to become industry leaders with the FX Advanced. With its aluminium profile gantry and high power Servo Motors, the cutting torch can reach accelerations of up to 80mG’s.
AVAILABLE SIZES
| WORKING AREA |
|---|
| 6000mm< x 2500mm |
| 6000mm< x 3100mm |
PRODUCTION PIERCE
Dependant on plasma (Up to 50mm)

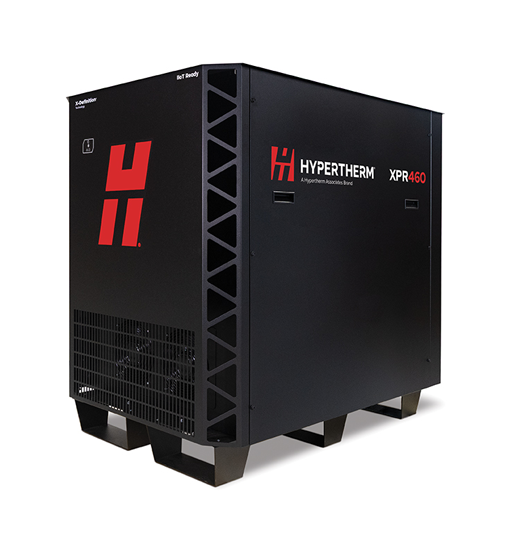

COMPATIBLE PLASMA UNITS
FEATURES
| Combats smoke pollution and material heat deformation |
| High accuracy |
| Advanced torch height control* |
| Ohmic or Stall Force plate sensing |
| Laser plate alignment |
| Aluminum profile gantry for optimised acceleration, cutting speeds and cut quality |
| Safety: X & Y limit switches, Emergency stop, Torch collision magnetic break-away. |
SPECIFICATIONS
| Waterbed |
| Working area: (L) 6000mm< x (W) 2500 - 3100mm |
| Controller: Edge Connect |
| Motion: Servo motor driven |
| Repeated Accuracy: ± 0.05mm |
| Rapid speeds up to 30000mm/min |
| Acceleration: Up to 80mG |
| Direct drive reduction planetary gearbox |
| Pressure loaded rack & pinion |
| High precision linear guides |
| Dual X-Drive gantry system |
| Plasma Range: HPRXD & XPR |
